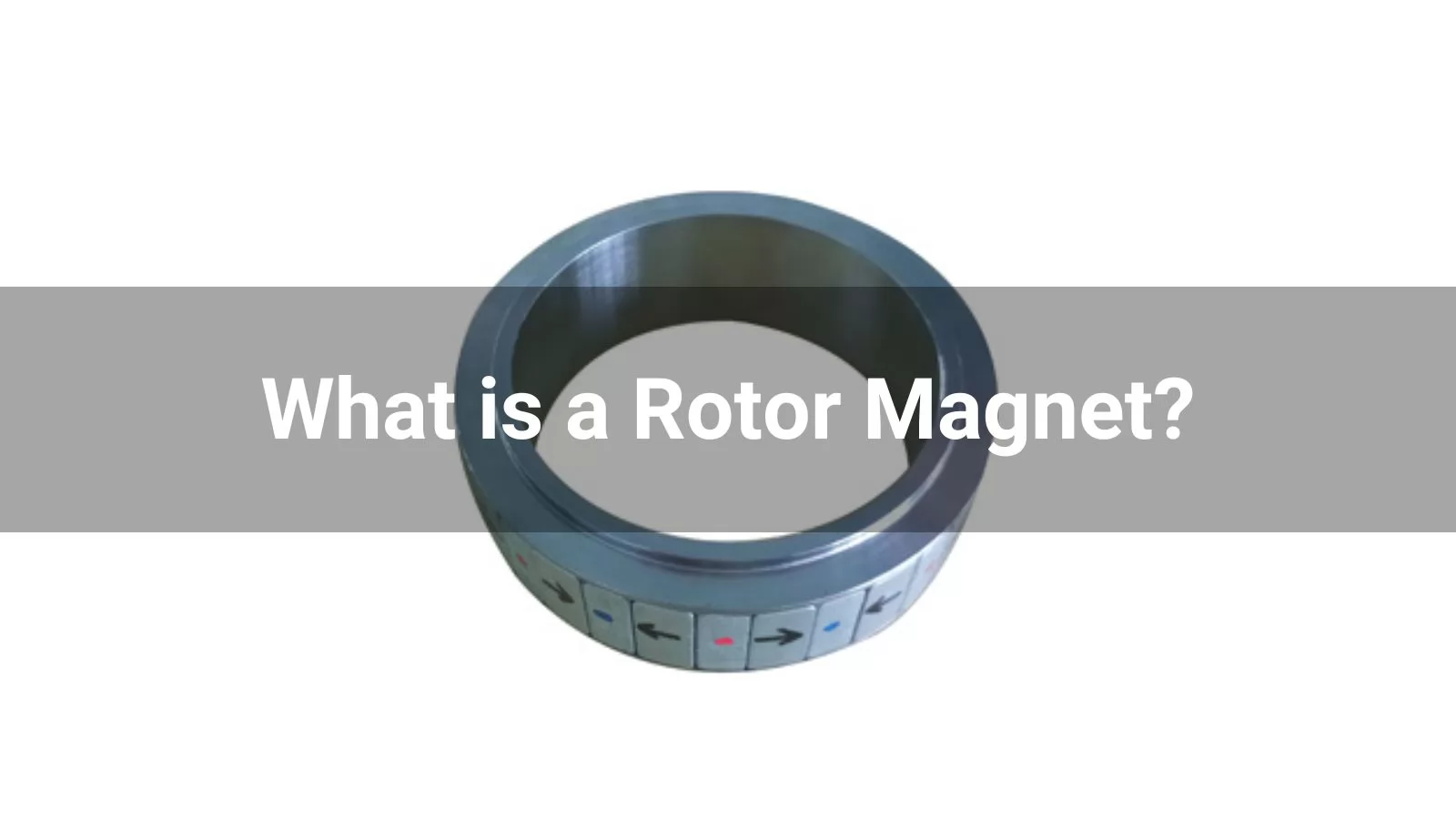

What is a Rotor Magnet?
A rotor magnet, often referred to as a permanent magnet rotor, is a critical component in the world of electromechanical devices, serving as the non-stationary, or moving, part of a motor or generator. Unlike the stator, which remains fixed, the rotor is the dynamic element that rotates within the device, enabling the conversion of electrical energy into mechanical motion—or vice versa, in the case of generators. This ingenious piece of engineering lies at the heart of electric motors, alternators, and other rotating machinery, driving everything from household appliances to industrial equipment and electric vehicles.
How It Works
The rotor operates by leveraging the principles of magnetism and electromagnetic induction. Magnetic rotors are meticulously designed with multiple poles—regions of magnetic strength—arranged around their circumference. Each pole alternates in polarity, meaning it switches between north and south as you move from one pole to the next. This alternating polarity creates a rotating magnetic field when paired with the stator’s electromagnetic forces, propelling the rotor into motion. In permanent magnet rotors, these poles are generated by powerful, fixed magnets—typically made from materials like neodymium, samarium-cobalt, or ferrite—ensuring a consistent and robust magnetic field without the need for external power to sustain it.
Design and Structure
The construction of a magnetic rotor is both precise and purposeful. Depending on the application, rotors can vary in size, shape, and complexity. They often consist of a cylindrical core—made from laminated steel or other ferromagnetic materials—to enhance magnetic efficiency and reduce energy losses due to eddy currents. Embedded or mounted onto this core are the permanent magnets, strategically positioned to optimize the magnetic field’s strength and distribution. In some designs, the magnets are surface-mounted, while in others, they’re embedded within the rotor (known as an interior permanent magnet rotor), offering greater mechanical stability and efficiency for high-speed applications.
Applications
Magnetic rotors are ubiquitous in modern technology. In electric motors, they power everything from the fans in your home to the propulsion systems in electric cars, delivering high efficiency and torque. In generators, they convert mechanical energy—such as from wind turbines or hydroelectric dams—into electricity, capitalizing on their ability to maintain a steady magnetic field. Beyond these, magnetic rotors are also found in specialized devices like magnetic couplings, pumps, and even high-precision instruments, showcasing their versatility across industries.
Why It Matters
The alternating polarity of the rotor’s poles is more than just a design quirk—it’s the key to its functionality. This configuration ensures a continuous interaction with the stator’s magnetic field, driving smooth, reliable rotation. The use of permanent magnets in rotors also boosts energy efficiency, as no additional electrical current is required to generate the rotor’s magnetic field, unlike in wound-rotor designs. This makes permanent magnet rotors a preferred choice in applications where performance, compactness, and energy savings are paramount.
In essence, the rotor magnet is a marvel of engineering that bridges the gap between magnetic forces and mechanical power, playing an indispensable role in the machines that shape our daily lives and the global economy.
