What Is a Magnetic Liquid Trap and How Is It Used?

In industries where product purity and equipment protection are paramount, magnetic liquid traps play a critical role. These specialized devices, also known as magnetic liquid filters or magnetic separators, are engineered to remove ferrous (iron-based) and sometimes paramagnetic contaminants from liquid and semi-liquid processing lines. By leveraging powerful magnetic fields, magnetic liquid traps ensure that unwanted metal particles do not compromise product quality or damage downstream machinery. This article explores the definition, components, working principles, applications, and benefits of magnetic liquid traps, providing a comprehensive understanding of their importance in modern industrial processes.

What Is a Magnetic Liquid Trap?

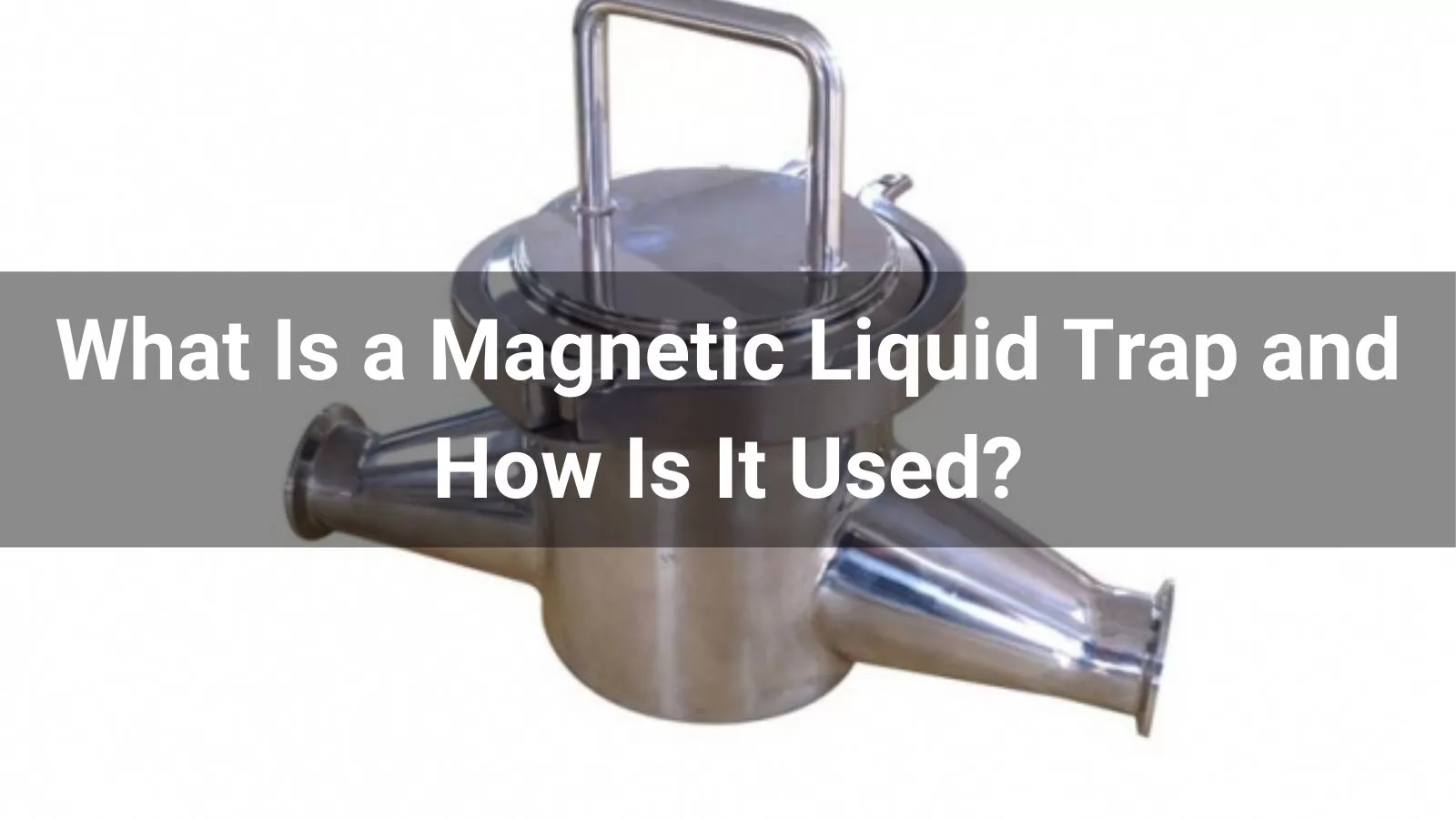

A magnetic liquid trap is a filtration device designed to extract ferrous contaminants, such as iron, steel, or work-hardened stainless steel fragments, from liquid or semi-liquid materials of varying viscosities. These traps typically consist of a stainless steel housing (often 304 or 316L grade for corrosion resistance) that encases a series of high-strength magnetic elements, such as neodymium (NdFeB) or rare-earth magnets. The housing features an inlet and outlet for liquid flow, and the magnetic elements are arranged in a grid or tube configuration to maximize contact with the liquid stream.

The primary function of a magnetic liquid trap is to capture and retain metal particles as the liquid passes through the magnetic field. This process ensures that the output liquid is free from contaminants that could affect product quality or cause mechanical damage. Magnetic liquid traps are used in industries such as food and beverage, pharmaceuticals, chemicals, ceramics, and more, where maintaining high standards of purity and safety is essential.

Key Components

• Magnetic Elements: High-intensity magnets, typically neodymium or rare-earth, generate a strong magnetic field (up to 13,000 gauss in some models) to attract and hold ferrous particles.

• Housing: Made from sanitary-grade stainless steel (304 or 316L), the housing withstands corrosive liquids and meets food safety standards. It includes inlet/outlet connections like flanges, clamps, or threads.

• Sealing Mechanisms: Gaskets, such as silicone rubber or EPDM, ensure leak-free operation and compliance with hygienic standards.

• Optional Features: Some traps include easy-clean designs, quick-release clamps, or double-wall jackets for temperature-sensitive liquids like chocolate or syrup.

How Does a Magnetic Liquid Trap Work?

The operation of a magnetic liquid trap is straightforward yet highly effective. The device is installed in a pipeline, allowing liquid or semi-liquid material to flow through the housing. Here's a step-by-step explanation of its working principle:

1. Liquid Entry: The contaminated liquid or slurry enters the trap through the inlet, typically via a flange, clamp, or threaded connection. The housing is designed to integrate seamlessly with existing pipelines.

2. Magnetic Field Interaction: Inside the housing, the liquid flows over or through a tightly spaced grid of magnetic tubes or bars. These magnets generate a high-gradient magnetic field that attracts ferrous particles, including fine debris and work-hardened stainless steel fragments, which may not be detected by metal detectors.

3. Contaminant Capture: As the liquid passes through, ferrous particles are pulled toward the magnetic elements and adhere to their surfaces. The design ensures maximum contact between the liquid and the magnetic field, capturing even sub-micron-sized particles.

4. Clean Liquid Output: The purified liquid exits through the outlet, free from ferrous contaminants, and continues downstream for further processing or packaging. Non-magnetic materials pass through unaffected.

5. Cleaning Process: To maintain efficiency, the trap must be cleaned periodically. This involves stopping the liquid flow, removing the magnetic assembly (often via a quick-release mechanism), and wiping or washing off the captured particles. Easy-clean designs simplify this process, reducing downtime.

The efficiency of a magnetic liquid trap depends on factors such as the strength of the magnetic field (measured in gauss), the arrangement of magnetic elements, the viscosity and flow rate of the liquid, and the size and concentration of contaminants.

Applications of Magnetic Liquid Traps

Magnetic liquid traps are versatile and widely used across various industries to ensure product purity, protect equipment, and meet regulatory standards. Below are some key applications:

1. Food and Beverage Industry

• Use Case: Removing metal particles from liquids like juices, syrups, chocolate, soups, sauces, and dairy products.

• Purpose: Ensures product safety and compliance with food-grade standards (e.g., USDA, 3A). Prevents contamination that could harm consumers or damage processing equipment like pumps or nozzles.

• Example: A magnetic liquid trap installed at a beverage bottling plant captures metal fragments from canned drinks, preventing nozzle blockages.

2. Pharmaceutical Industry

• Use Case: Filtering chemical slurries, liquid medicines, or semi-liquid formulations.

• Purpose: Maintains product purity and prevents contamination in sensitive pharmaceutical processes. Protects high-precision equipment from abrasive metal particles.

• Example: A trap removes ferrous fines from liquid drug formulations, ensuring compliance with stringent quality standards.

3. Chemical and Petrochemical Industry

• Use Case: Purifying chemical slurries, oils, or other liquid intermediates.

• Purpose: Prevents metal contaminants from affecting chemical reactions or damaging refining equipment. Maintains product quality in processes like styrene production.

• Example: A Texas oil refinery uses magnetic traps in distillation towers to capture ferrites, improving product purity and reducing maintenance.

4. Ceramics and Mining

• Use Case: Removing iron-based impurities from ceramic slurries or mining liquids.

• Purpose: Enhances the quality of ceramic products by eliminating metal particles that could cause defects. Protects processing equipment in abrasive environments.

• Example: A ceramic manufacturer uses a trap to filter slurry, ensuring a smooth finish on final products.

5. Other Industries

• Plastics and Recycling: Removes metal contaminants from liquid plastic resins.

• Lithium Battery Production: Filters slurries to ensure purity in battery material processing.

• Environmental Applications: Purifies water or other liquids in treatment processes.

Magnetic liquid traps can be installed horizontally, vertically, or at an angle, making them adaptable to various pipeline configurations. They are often placed before critical equipment like pumps, screens, or mills to prevent damage and downtime.

Benefits of Magnetic Liquid Traps

Magnetic liquid traps offer several advantages that make them indispensable in industrial settings:

1. Enhanced Product Purity: By removing ferrous and paramagnetic contaminants, traps ensure high-quality, contamination-free products, critical for consumer safety and regulatory compliance.

2. Equipment Protection: Capturing metal particles prevents wear, clogging, or damage to pumps, nozzles, and other machinery, reducing maintenance costs and downtime.

3. Cost-Effectiveness: Unlike disposable filters, magnetic traps are reusable after cleaning, lowering operational costs and reducing waste, making them an environmentally friendly solution.

4. High Efficiency: With magnetic strengths up to 13,000 gauss, traps capture even the smallest particles (down to sub-micron sizes), offering superior performance compared to traditional filters.

5. Versatility: Suitable for a wide range of liquids, from low-viscosity juices to high-viscosity molasses, and adaptable to various temperatures (up to 350°C) and pressures (up to 16 MPa).

6. Ease of Maintenance: Easy-clean designs and quick-release mechanisms minimize cleaning time, ensuring minimal disruption to production.

7. Compliance with Standards: Constructed with food-grade materials and sanitary designs, traps meet stringent industry regulations, such as FDA and 3A standards.

Considerations for Selecting a Magnetic Liquid Trap

When choosing a magnetic liquid trap, several factors should be considered to ensure optimal performance:

• Viscosity and Flow Rate: High-viscosity liquids require stronger magnetic fields, while faster flow rates may need larger traps to maintain efficiency.

• Contaminant Size and Concentration: Higher gauss ratings (e.g., 10,000–13,000) are needed for fine or low-concentration particles.

• Chemical Composition: Corrosive liquids require stainless steel (316L) or special coatings like PTFE to prevent damage.

• Temperature and Pressure: For high-temperature (e.g., chocolate) or high-pressure applications, select traps with appropriate ratings or jacketed designs.

• Cleaning Frequency: High-contaminant environments benefit from easy-clean or automated cleaning systems to reduce downtime.

• Pipeline Compatibility: Ensure the trap’s inlet/outlet size and connection type (flange, clamp, etc.) match the existing pipeline.

Consulting with a reputable supplier, such as Bunting, GTEK Magnet, or Eclipse Magnetics, can help tailor the trap to specific needs.

Maintenance and Cleaning

Regular cleaning is essential to maintain the effectiveness of a magnetic liquid trap. The process typically involves:

1. Stopping the Flow: Manually or automatically halt the liquid flow to access the trap.

2. Removing the Magnetic Assembly: Open the housing (often via a clamp or quick-release mechanism) and extract the magnetic bars or grid.

3. Cleaning the Magnets: Use gloves, rags, or a high-pressure air gun to remove captured particles. For stubborn residues, wash with water or use scouring powder to remove rust stains.

4. Reinstallation: Ensure the sealing gasket is properly aligned to prevent leaks, then reinstall the magnetic assembly and resume operation.

Cleaning frequency depends on the contaminant concentration and production volume. High-contaminant environments may require daily cleaning, while others may need it weekly or monthly. Regular maintenance prevents rust buildup and ensures consistent performance.

Conclusion

Magnetic liquid traps are indispensable tools in industries that demand high product purity and equipment reliability. By using powerful magnetic fields to capture ferrous and paramagnetic contaminants, these devices protect both products and machinery, ensuring compliance with stringent safety and quality standards. Their versatility, cost-effectiveness, and ease of maintenance make them a preferred choice across food, pharmaceutical, chemical, and other sectors. As industries continue to prioritize sustainability and efficiency, magnetic liquid traps will remain a cornerstone of modern liquid processing, safeguarding quality and enhancing operational performance.
