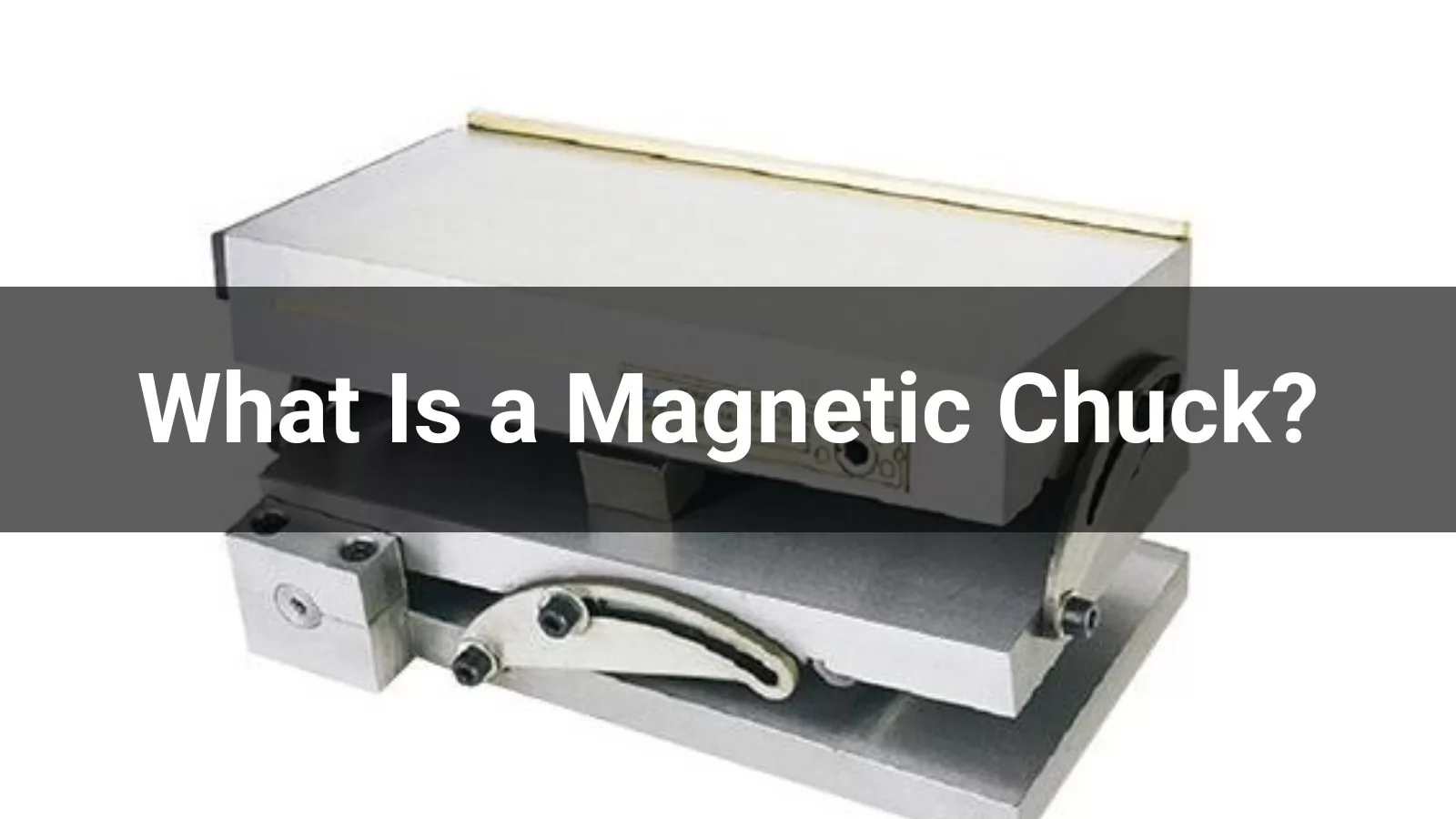

What Is a Magnetic Chuck?
When it comes to machining and manufacturing, securely holding workpieces during operations like milling, grinding, or turning is critical. This is where magnetic chucks come into play—an indispensable tool for clamping ferromagnetic materials effectively and reliably. But what exactly are magnetic chucks, and how do they work? In this guide, we’ll explore their functionality, types, benefits, applications, key considerations, and tips for maintenance and safety.
What Is a Magnetic Chuck?
A magnetic chuck is a specialized device used in machining and manufacturing to hold ferrous (iron-containing) workpieces firmly in place during processes such as grinding, milling, or turning. Unlike traditional mechanical clamps, magnetic chucks rely on the power of magnetism to secure the workpiece, offering a stable and precise hold that enhances accuracy and efficiency. Available in various forms—such as permanent magnetic, electromagnetic, and electro-permanent chucks—they cater to different needs based on the strength and control required.
How Does a Magnetic Chuck Work?
Magnetic chucks operate by harnessing the principle of magnetism to securely grip ferrous workpieces during machining processes. The process begins with the creation of a magnetic field, generated either by permanent magnets or electromagnets. In permanent magnetic chucks, fixed magnets with constant polarity provide a steady field, while electromagnetic chucks use electric current flowing through coils to produce a controllable magnetic force. When a ferrous workpiece is placed on the chuck’s surface, the magnetic field induces an opposite polarity in the material, resulting in a strong attraction between opposing poles that locks the workpiece firmly in place. This firm grip eliminates movement or vibration, ensuring stability for precision machining and delivering a high-quality finish. For electromagnetic chucks, adjustability is a key feature—by varying the electric current, the magnetic strength can be tailored to accommodate different workpiece sizes and shapes, enhancing versatility. Once machining is complete, the workpiece is released by deactivating the chuck; electromagnetic models achieve this by switching off the current, while permanent magnetic chucks rely on manual disruption or natural dissipation of the field.
Types of Magnetic Chucks
Magnetic chucks are classified based on their magnet properties, with each type tailored to specific machining requirements. The first type, permanent magnetic chucks, utilizes fixed magnets with continuous polarity to hold workpieces securely. These chucks feature magnets arranged with opposing poles on a top plate, all encased within a solid unit. Operating without the need for electricity, they are easy to use and maintain, offering a simple and durable solution. However, while they excel in longevity, their holding force may fall short when dealing with heavier materials that demand greater intensity.
Next, electromagnetic chucks function differently, relying on an electric current to activate their magnetic properties. Without current, the magnets remain inactive, but once electricity flows through the coils, the inner core becomes magnetized, generating a strong magnetic field. This design allows the chuck to be switched off effortlessly, releasing the workpiece quickly—though it remains locked in place as long as power is supplied. Compared to permanent magnetic chucks, electromagnetic versions offer superior adhesion power, making them ideal for securely holding irregularly shaped items during machining.
Finally, electro-permanent magnetic chucks blend features of both permanent and electromagnetic types, providing a versatile hybrid solution. These chucks require a short electric pulse to lock or unlock the workpiece, achieved through coils surrounding each permanent magnet that enable rapid polarity shifts and adjustable magnetic pull. Once activated, they maintain a firm grip even during power outages, preventing accidental release and enhancing safety. This combination of stability and flexibility makes electro-permanent chucks highly adaptable for a wide range of machining operations.
Advantages of Using Magnetic Chucks
Magnetic chucks offer a host of advantages that make them a preferred choice in machining. They provide a secure, tight grip on workpieces, minimizing the risk of movement and enhancing precision during operations. Their versatility shines through as they accommodate both flat and irregularly shaped workpieces of varying sizes, adapting seamlessly to perse setups. Unlike traditional mechanical clamps, magnetic chucks eliminate the need for complex fixtures, speeding up setup times and boosting overall productivity. With no clamps obstructing the surface, they allow machinists full access to multiple sides of the workpiece without repositioning, streamlining the process. By minimizing vibrations, they ensure a smoother surface finish, often reducing the need for additional finishing steps. Cost-wise, their durability and low-maintenance nature make them an economical option compared to other holding methods over time. Additionally, they enhance safety by reducing the risk of accidents from loose workpieces and eliminating manual clamping, thereby protecting operators from potential hazards.
Applications of Magnetic Chucks
Thanks to their adaptability, magnetic chucks are widely used across industries:
- Metal Cutting: Essential in turning, milling, grinding, and drilling, they hold workpieces steady for precise cuts in machine tools and machining centers.
- Quick Mold Change: In injection molding and ceramic pressing, electro-permanent chucks enable rapid mold swaps, boosting efficiency and profitability.
- Magnetic Lifting: Used to handle steel plates in automotive, shipbuilding, and similar sectors, they simplify lifting and positioning tasks.
- Welding Clamping: Magnetic chucks secure pipe sections and plates during welding, offering strong, reliable clamping that outperforms traditional methods.
Factors to Consider When Using a Magnetic Chuck
To maximize the effectiveness of a magnetic chuck, several key factors should be considered. First, the workpiece material is crucial—magnetic chucks are designed to work exclusively with ferrous materials, meaning non-ferrous items like aluminum or copper will need alternative clamping methods. The size and shape of the chuck should also align closely with the workpiece to ensure optimal contact and holding strength; a mismatch can weaken the grip and reduce accuracy. Adjusting the magnetic force is equally important—too much force might deform delicate parts, while too little could lead to slippage during machining. The condition of the chuck’s surface plays a vital role as well—it must be clean, flat, and free of debris to maintain maximum holding power and precision. Finally, safety precautions are non-negotiable: never place hands between the chuck and workpiece when it’s active, and always adhere to the manufacturer’s guidelines to prevent injuries and ensure safe operation.
Maintenance and Safety Considerations
Regular maintenance is essential to keep magnetic chucks performing at their best and to extend their lifespan. This involves several key practices: cleaning the chuck’s surface periodically to remove dirt, oil, or other substances that could tarnish it and affect its grip; inspecting it regularly for signs of wear or damage, such as cracks or uneven surfaces, to address issues before they worsen; ensuring electrical safety for electromagnetic chucks by maintaining secure and proper connections to avoid hazards or malfunctions; and storing the chucks properly in a clean, dry environment, away from moisture and extreme temperatures that could cause deterioration. By following these steps, you can ensure both optimal functionality and safety over time.
Conclusion
Magnetic chucks are essential tools in machining and manufacturing, providing a secure, efficient way to hold ferrous workpieces during a variety of operations. By understanding their workings, types, advantages, and applications—along with proper usage and maintenance—you can harness their full potential for safe, precise, and productive machining. Whether you’re milling intricate parts or lifting heavy steel, magnetic chucks offer a reliable solution tailored to modern industrial demands.
