Neodymium Magnet Material - Powerful & Cost Effective

Neodymium magnets, also known as NdFeB or Neo magnets, are the most powerful magnets available today. With their exceptional magnetic strength and versatility, neodymium magnets have become indispensable in a wide range of industries, from electronics and automotive to healthcare and renewable energy. In this comprehensive guide, we will delve into the world of neodymium magnets, exploring their properties, manufacturing process, applications, and more. Whether you are a manufacturer looking to source neodymium magnets or an engineer seeking to understand their capabilities, this guide will provide you with valuable insights into this remarkable material.

1.What are Neodymium Magnets?

Neodymium magnets, often referred to as neodymium iron boron magnets, are a type of rare-earth magnet made from an alloy of neodymium, iron, and boron. First developed in 1982 by General Motors and Sumitomo Special Metals, these magnets have since revolutionized various industries with their remarkable strength and efficiency. So, what exactly are neodymium magnets and why are they so essential in today’s world?

At the heart of these magnets is neodymium, a silvery-white metal that belongs to the lanthanide series on the periodic table. When combined with iron and boron, neodymium forms a tetragonal crystalline structure, giving the magnets their extraordinary magnetic properties. These properties make neodymium iron boron magnets the strongest type of permanent magnet available, capable of producing magnetic fields significantly stronger than those of conventional magnets like ferrite or alnico.

But it’s not just about strength. Neodymium magnets are incredibly versatile. They are widely used in applications ranging from small-scale electronics to large industrial machinery. This versatility stems from their unique balance of high magnetic strength and cost-effectiveness. As a result, finding neodymium iron boron magnets for sale has become increasingly common, catering to a broad spectrum of uses and industries.

One might wonder, what makes these magnets so powerful? It all boils down to their high magnetic energy density. This means that even a small neodymium magnet can exert a force strong enough to support weights hundreds of times its own. This characteristic makes them ideal for compact devices where space is at a premium, yet a strong magnetic force is required. Think of the miniature motors in drones, the speakers in your earbuds, or even the magnetic fastenings in high-tech gadgets.

Moreover, neodymium magnets play a crucial role in modern green technologies. They are integral components in wind turbine generators, where their high efficiency translates to better energy conversion rates. Electric vehicles also rely on these magnets to power their motors, contributing to a more sustainable and eco-friendly transportation solution. Thus, the impact of neodymium magnets on the pursuit of renewable energy and reduced carbon footprints cannot be overstated.

2.Types of Neodymium Magnets

When it comes to neodymium magnets, there is a broad variety available, each designed to suit specific applications and requirements. Understanding the different types of neodymium magnets is crucial for choosing the right magnet for your needs, whether you’re looking for high strength, specific shapes, or certain performance characteristics. Here, we will explore the main types of neodymium iron boron magnets and their distinctive features.

Sintered Neodymium Magnets

Sintered neodymium magnets are the most common and widely used type. They are created through a powder metallurgy process where neodymium, iron, and boron powders are compressed and heated to form a dense, solid magnet. This process results in a magnet with excellent magnetic properties and high resistance to demagnetization. Sintered neodymium magnets are available in various grades, each denoted by their magnetic strength, with higher grades offering greater magnetic force. You will often find these magnets in motors, sensors, and other industrial applications where strong, stable magnets are required.

Grades of Sintered Neodymium Magnets

Sintered neodymium magnets come in a range of grades, typically marked by their maximum energy product (BHmax), which indicates the strength of the magnet. Common grades include N35, N42, N52, and so forth. The higher the grade number, the stronger the magnetic field produced by the magnet. For example, an N52 grade magnet is much more powerful than an N35 magnet, making it suitable for applications requiring extreme magnetic force.

Bonded Neodymium Magnets

Bonded neodymium magnets are another type that offers unique advantages. Unlike sintered magnets, bonded magnets are made by mixing neodymium powder with a binding resin and then forming them into shape. This process allows for the creation of magnets with complex shapes and sizes that would be difficult or impossible to achieve with sintering. Bonded neodymium magnets have lower magnetic strength compared to sintered magnets but offer greater flexibility in design and better resistance to chipping and cracking. These magnets are ideal for applications in automotive components, computer hard drives, and medical devices where precise shapes and dimensions are crucial.

Types of Bonded Neodymium Magnets

Bonded magnets are available in various forms, including compression-bonded, injection-molded, and extrusion-bonded magnets. Each type has its own set of characteristics and benefits:

• Compression-bonded magnets are made by compressing neodymium powder and a binding agent into a mold. These magnets offer good magnetic strength and are often used in small motors and sensors.
• Injection-molded magnets are produced by injecting a mixture of neodymium powder and plastic resin into a mold. This method allows for the creation of highly complex shapes and provides excellent dimensional stability, making them ideal for precision applications like electronic devices and automotive parts.
• Extrusion-bonded magnets are made by extruding a mixture of neodymium powder and binder through a die. This process produces magnets with consistent properties and is suitable for applications that require long, uniform shapes such as magnetic strips and rods.

Coated Neodymium Magnets

Given that neodymium magnets are prone to oxidation and corrosion, they are often coated to enhance their durability and longevity. Coated neodymium magnets typically feature a protective layer of nickel, epoxy, or another material that prevents rust and wear. The choice of coating depends on the environment in which the magnet will be used. For instance, nickel coatings provide good corrosion resistance for general applications, while epoxy coatings offer enhanced protection in more challenging environments, such as in marine or humid conditions.

Custom Neodymium Magnets

Beyond standard shapes and sizes, custom neodymium magnets are available to meet specific application requirements. Manufacturers can produce magnets with tailored dimensions, shapes, and magnetic properties to fit unique project needs. Whether you need a magnet with a specific hole pattern, an unusual geometric shape, or a magnet designed to operate under extreme temperatures, custom neodymium magnets provide the flexibility to achieve these objectives. These magnets are particularly valuable in research and development projects, bespoke manufacturing solutions, and specialized industrial applications.

3.Key Characteristics and Properties

Neodymium magnets are known for their exceptional strength and unique characteristics, making them the go-to choice in various industrial and technological applications. In this section, we will delve into the key characteristics and properties that set neodymium magnets apart from other types of magnets, including their magnetic strength, thermal stability, and more. Understanding these properties is crucial for selecting the right magnet for your specific needs.

Magnetic Strength

The most notable feature of neodymium iron boron magnets is their extraordinary magnetic strength. Neodymium magnets exhibit the highest magnetic field strength of any commercially available magnet, typically ranging from 1.0 to 1.4 Tesla. This high strength allows them to exert a significant magnetic force even at small sizes, which is why they are widely used in compact applications like electronics, medical devices, and magnetic separators. Their powerful magnetic fields can easily attract ferromagnetic materials, providing efficient performance in various demanding environments.

For example, a small neodymium magnet measuring just a few millimeters can support weights many times its own. This unparalleled strength makes them ideal for applications requiring high force in a confined space. Additionally, the high magnetic energy product (BHmax) of neodymium magnets allows them to store substantial amounts of magnetic energy, making them highly efficient in energy-conversion applications such as motors and generators.

Thermal Stability

Neodymium magnets are sensitive to temperature changes, which can affect their magnetic properties. They typically operate best at temperatures up to 80°C (176°F). However, special high-temperature grades can function effectively at temperatures as high as 200°C (392°F). At elevated temperatures, neodymium magnets may lose some of their magnetic strength, but this can be minimized with proper selection of grade and coating. It is important to choose a magnet grade that suits the thermal environment of the application to ensure optimal performance and longevity.

Temperature fluctuations can lead to irreversible losses in magnetic strength, so applications involving significant temperature changes require careful consideration of the magnet's thermal stability. For example, in automotive or aerospace applications, where components are exposed to varying temperatures, using a magnet with high thermal stability is crucial to maintain reliable performance.

Corrosion Resistance

Despite their impressive magnetic properties, neodymium iron boron magnets are prone to corrosion, especially in humid or salty environments. To combat this, neodymium magnets are often coated with protective layers such as nickel, zinc, or epoxy. These coatings not only enhance their durability and resistance to rust but also extend the magnet's lifespan by shielding it from environmental factors that can degrade its performance.

For applications exposed to harsh conditions, choosing the appropriate coating is essential to prevent deterioration. For instance, epoxy coatings offer superior protection in marine environments, while nickel coatings are suitable for general use in less aggressive settings. Ensuring adequate protection against corrosion is key to maintaining the functionality and efficiency of neodymium magnets over time.

Demagnetization Resistance

One of the critical properties of neodymium magnets is their resistance to demagnetization. This is largely due to their high coercivity, which is a measure of the material's ability to withstand external magnetic fields without losing its magnetism. Neodymium magnets have a much higher coercivity compared to other types of magnets, such as ferrite or alnico, making them highly resistant to demagnetization in most applications.

This characteristic is particularly important in applications where magnets are exposed to opposing magnetic fields or mechanical shocks. For instance, in electric motors, the magnets must retain their magnetization despite the strong magnetic fields and vibrations they encounter. Neodymium magnets' resistance to demagnetization ensures consistent performance and longevity in such demanding environments.

Shape and Size Versatility

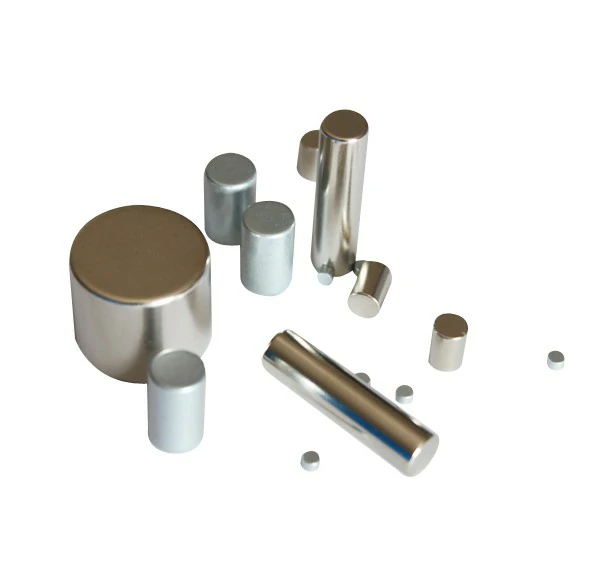

Neodymium magnets come in a wide variety of shapes and sizes, from small discs and rings to large blocks and custom shapes. This versatility allows them to be tailored to fit specific applications and spatial constraints. Whether you need a tiny magnet for a medical device or a large, powerful magnet for an industrial application, neodymium magnets can be manufactured to meet your exact requirements.

The ability to produce neodymium magnets in diverse shapes and sizes is facilitated by the advanced manufacturing processes used, including sintering and bonding. This flexibility in design and production makes neodymium magnets highly adaptable to various uses, from consumer electronics to heavy machinery.

Cost-Effectiveness

Although neodymium magnets are more expensive than some other types of magnets, such as ferrite, their superior strength and efficiency make them a cost-effective choice in many applications. The high performance and durability of neodymium magnets often lead to reduced maintenance costs and longer service life, offsetting their initial higher price. In many cases, the investment in neodymium magnets pays off through improved product performance and operational efficiency.

For example, in renewable energy applications like wind turbines, the enhanced efficiency of neodymium magnets can significantly reduce the cost per kilowatt-hour of electricity generated. Similarly, in electric vehicles, the superior magnetic strength of neodymium magnets contributes to better motor performance, leading to lower operational costs and increased vehicle range.

4.Manufacturing Process of Neodymium Magnets

The manufacturing process of neodymium magnets involves a series of complex steps that transform raw materials into powerful and versatile magnets. Understanding this process is essential for appreciating the precision and technology involved in producing these high-performance magnets. In this section, we will explore each stage of the manufacturing process in detail, from raw material preparation to the final magnetization and coating.

Raw Material Preparation

The first step in the production of neodymium iron boron magnets is the preparation of raw materials. The primary components are neodymium (Nd), iron (Fe), and boron (B). Neodymium, a rare earth element, is typically sourced from mineral deposits such as monazite or bastnäsite. These minerals undergo chemical processing to extract pure neodymium. Iron is obtained in its pure form, while boron is usually derived from boric acid or borates.

Other elements, such as dysprosium (Dy) and praseodymium (Pr), may also be added to enhance specific properties, such as thermal stability and magnetic performance. The precise composition of the alloy can vary depending on the desired characteristics of the final magnet. Once the raw materials are gathered, they are weighed and mixed in precise proportions to ensure consistency and quality in the final product.

Alloy Melting and Casting

The mixed raw materials are then melted together in a vacuum induction furnace to form an alloy. The vacuum environment prevents oxidation and contamination, which is crucial for maintaining the purity of the alloy. The molten alloy is cast into ingots, which are then cooled and solidified. This step forms the base material from which the neodymium magnets will be manufactured.

The solidified ingots are typically broken into smaller pieces or flakes to facilitate the next stage of processing. This stage is critical, as the quality of the alloy determines the magnetic properties and performance of the final magnets. Precision in alloy composition and melting conditions ensures that the magnets meet the required specifications for various applications.

Powder Preparation

The alloy flakes are then subjected to a process known as hydrogen decrepitation, where they are exposed to hydrogen gas. The hydrogen is absorbed into the alloy, causing it to break down into a fine powder. This powder is then milled further to achieve the desired particle size. The powder must be extremely fine and uniform to ensure optimal magnetic properties in the final magnets.

During this stage, additional elements, such as cobalt or dysprosium, may be introduced to the powder to enhance specific properties, like corrosion resistance or high-temperature stability. The resulting powder is carefully controlled for particle size and composition to ensure that it meets the stringent requirements for the next stage of manufacturing.

Sintering

The fine powder is then pressed into a mold to form a compact shape, which is referred to as a “green body.” This pressing process aligns the magnetic domains within the powder, setting the stage for the final magnet's magnetic properties. The green body is then subjected to a sintering process, where it is heated to a high temperature, typically around 1,000°C (1,832°F), in a controlled atmosphere.

Sintering causes the powder particles to bond together, creating a dense and solid magnet. This process is crucial for achieving the desired strength and durability of the neodymium magnet. The temperature and atmosphere conditions during sintering are carefully controlled to optimize the magnetic properties and structural integrity of the magnets.

Machining and Shaping

After sintering, the magnets are machined to their final shape and size. This may involve cutting, grinding, and polishing the magnets to achieve precise dimensions and surface finishes. The machining process must be performed with high precision to ensure that the magnets meet the exact specifications required for their intended applications.

Specialized tools and techniques are used to shape the magnets without compromising their magnetic properties. This step is particularly important for applications requiring custom shapes or sizes, such as in medical devices or high-performance motors. The precision machining ensures that the magnets fit perfectly within their assemblies and perform optimally.

Coating

Once the magnets are shaped, they are coated to protect against corrosion and environmental damage. Common coatings include nickel, zinc, gold, and epoxy. The choice of coating depends on the application and the environmental conditions the magnet will be exposed to. For instance, epoxy coatings provide excellent protection in marine environments, while nickel coatings are commonly used for general-purpose applications.

The coating process involves applying a thin layer of the protective material to the magnet's surface, which is then cured or dried. This coating not only enhances the durability and longevity of the magnets but also helps maintain their magnetic properties over time. Proper coating is essential for applications where the magnets are exposed to moisture, chemicals, or extreme temperatures.

Magnetization

The final step in the manufacturing process is magnetization. During this step, the magnets are exposed to a strong magnetic field, which aligns the magnetic domains within the material, giving the magnets their powerful magnetic properties. The strength and direction of the applied magnetic field determine the final magnet's performance characteristics.

The magnetization process is typically performed using an electromagnetic coil, which generates the necessary magnetic field. This step must be carefully controlled to ensure that the magnets achieve the desired magnetic properties and orientation. The resulting neodymium magnets are then tested to verify their strength and performance, ensuring they meet the required specifications.

Quality Control and Testing

Quality control is a critical aspect of the manufacturing process for neodymium magnets. Each batch of magnets undergoes rigorous testing to ensure that they meet the required specifications for magnetic strength, dimensional accuracy, and corrosion resistance. Testing methods include measuring the magnetic field strength, inspecting the physical dimensions, and performing environmental tests to assess the durability and reliability of the magnets.

Quality control ensures that the magnets deliver consistent performance in their intended applications. By adhering to strict quality standards, manufacturers can provide high-quality neodymium magnets that meet the demands of various industries, from electronics to automotive and renewable energy.

Packaging and Shipping

After passing quality control, the finished neodymium magnets are packaged for shipment. Packaging is designed to protect the magnets from damage during transit and to prevent accidental magnetization of surrounding objects. Magnets are typically packaged with spacers or shields to maintain a safe distance from other materials and to prevent them from sticking together or to metallic surfaces.

Proper packaging is crucial for ensuring that the magnets arrive at their destination in perfect condition and ready for use. This step also includes labeling and documentation to provide information about the magnet's properties, handling instructions, and safety precautions.

5.Chemical and Physical Properties

Neodymium magnets, known for their exceptional magnetic strength and versatility, exhibit unique chemical and physical properties that make them indispensable in various industrial and technological applications. In this section, we will explore these properties in detail, highlighting the factors that contribute to the superior performance of neodymium magnets.

5.1 Magnetic Properties and Strength

Neodymium magnets are renowned for their unparalleled magnetic properties and strength. These magnets are part of the rare-earth magnet family, which is characterized by their exceptionally high magnetic fields and energy products. The key attributes that contribute to the superior magnetic performance of neodymium magnets include:

• Remanence (Br): This property measures the magnet's ability to retain a significant amount of magnetization after an external magnetic field is removed. Neodymium magnets exhibit high remanence, allowing them to maintain strong magnetic fields even in the absence of an external source.
• Coercivity (Hc): Coercivity is the resistance of a magnet to demagnetization. Neodymium magnets possess high coercivity, meaning they can withstand external magnetic forces and maintain their magnetization without significant loss of magnetic properties.
• Energy Product (BHmax): The maximum energy product indicates the total magnetic energy stored in a magnet. Neodymium magnets have a high energy product, making them ideal for applications that require strong and compact magnetic fields.

The combination of these properties allows neodymium magnets to deliver powerful magnetic fields in relatively small sizes, making them suitable for a wide range of applications, including motors, sensors, and magnetic resonance imaging (MRI) devices.

Magnetic Field Strength

Neodymium magnets generate strong magnetic fields that can exceed 1.4 Tesla (T). The magnetic field strength is a critical factor in applications that require precise and powerful magnetic forces. For example, in electric motors, strong magnetic fields enhance the motor's efficiency and torque, while in medical devices, they enable high-resolution imaging and accurate diagnostics.

The magnetic field strength of neodymium magnets can be influenced by factors such as the magnet's size, shape, and composition. Customizing these parameters allows manufacturers to tailor the magnetic properties to meet specific application requirements.

Magnetic Anisotropy

Neodymium magnets exhibit magnetic anisotropy, meaning their magnetic properties vary depending on the direction of magnetization. This property is essential for applications that require directional magnetic fields, such as in magnetic separation and electronic devices. The ability to control the direction of magnetization allows for precise and efficient use of magnetic energy.

In summary, the superior magnetic properties of neodymium magnets, including high remanence, coercivity, and energy product, make them ideal for a wide range of high-performance applications. Their ability to generate strong magnetic fields in compact sizes sets them apart from other types of magnets.

5.2 Temperature Resistance and Stability

The temperature resistance and stability of neodymium magnets are crucial factors that determine their suitability for various applications. Neodymium magnets are known for their high magnetic strength, but their performance can be affected by temperature changes. The key aspects of temperature resistance and stability include:

Curie Temperature

The Curie temperature is the temperature at which a magnet loses its permanent magnetism and becomes paramagnetic. Neodymium magnets have a relatively low Curie temperature, typically around 310°C (590°F). Above this temperature, the magnetic domains within the magnet become randomized, leading to a loss of magnetization. For applications requiring high-temperature stability, neodymium magnets with additional elements such as dysprosium or terbium may be used to increase the Curie temperature and enhance thermal stability.

Thermal Coefficient of Magnetic Properties

The thermal coefficient of magnetic properties refers to the rate at which a magnet's magnetic strength decreases with increasing temperature. Neodymium magnets exhibit a negative thermal coefficient, meaning their magnetic strength decreases as temperature rises. This characteristic is important to consider in applications where the magnets are exposed to fluctuating temperatures, as it can affect the performance and reliability of the magnet.

To mitigate the effects of temperature changes, neodymium magnets can be engineered with specific alloys and coatings that enhance their thermal stability. This allows them to maintain their magnetic properties in environments with varying temperatures, ensuring consistent performance in demanding applications.

Applications in High-Temperature Environments

Neodymium magnets are widely used in applications that require high-temperature stability, such as in automotive and aerospace industries. For example, in electric vehicles, neodymium magnets are used in motors and generators, where they must withstand elevated temperatures and maintain their magnetic strength for optimal performance. Similarly, in aerospace applications, these magnets are used in sensors and actuators that operate under extreme temperature conditions.

In conclusion, while neodymium magnets have inherent limitations in terms of temperature resistance, advancements in material science and engineering have enabled the development of magnets with enhanced thermal stability, making them suitable for a wide range of high-temperature applications.

5.3 Corrosion Resistance and Coatings

Corrosion is a significant concern for neodymium magnets, as they are prone to oxidation and degradation when exposed to moisture and chemicals. To address this issue, neodymium magnets are typically coated with protective layers that enhance their corrosion resistance and extend their lifespan. The key aspects of corrosion resistance and coatings include:

Common Coating Materials

Several coating materials are used to protect neodymium magnets from corrosion. The choice of coating depends on the specific application and environmental conditions. Common coatings include:

• Nickel (Ni): Nickel is the most commonly used coating for neodymium magnets due to its excellent corrosion resistance and durability. A typical nickel coating consists of a layer of nickel and copper, providing a robust barrier against moisture and chemical exposure.
• Zinc (Zn): Zinc coatings offer good corrosion resistance and are often used for applications where cost-effectiveness is a priority. Zinc-coated magnets are suitable for use in dry or moderately humid environments.
• Epoxy: Epoxy coatings provide superior protection against harsh chemicals and extreme environmental conditions. They are commonly used in applications where magnets are exposed to aggressive environments, such as in marine and industrial settings.

Application of Coatings

The application of coatings to neodymium magnets involves several steps to ensure complete and uniform coverage. The process typically includes:

• Surface Preparation: The surface of the magnet is cleaned and prepared to remove any contaminants or oxidation that could interfere with the coating's adhesion.
• Coating Application: The chosen coating material is applied using techniques such as electroplating, spraying, or dipping. Each method ensures that the magnet is fully covered and protected from corrosion.
• Curing and Inspection: The coated magnet is cured to harden the coating, and then inspected to ensure complete and defect-free coverage.

Proper coating of neodymium magnets is essential for their longevity and performance in corrosive environments. By selecting the appropriate coating material and applying it correctly, manufacturers can significantly enhance the durability and reliability of neodymium magnets.

Environmental Considerations

In addition to enhancing corrosion resistance, coatings for neodymium magnets must also consider environmental impacts. Sustainable practices in coating application, such as reducing hazardous waste and using eco-friendly materials, are increasingly important in the production of neodymium magnets. By adopting environmentally responsible methods, manufacturers can contribute to reducing the ecological footprint of their products.

6.Applications of Neodymium Magnets

Neodymium magnets are renowned for their exceptional strength and versatility, making them indispensable in a multitude of applications across various industries. From powering motors to enhancing medical devices, these magnets play a crucial role in modern technology and innovation. In this section, we will explore some of the key applications of neodymium magnets and highlight how their unique properties are leveraged to meet specific needs and challenges.

Industrial Applications

The industrial sector is one of the largest consumers of neodymium magnets, utilizing their powerful magnetic properties to enhance efficiency and performance in a variety of processes and machinery. Key industrial applications include:

Motors and Generators

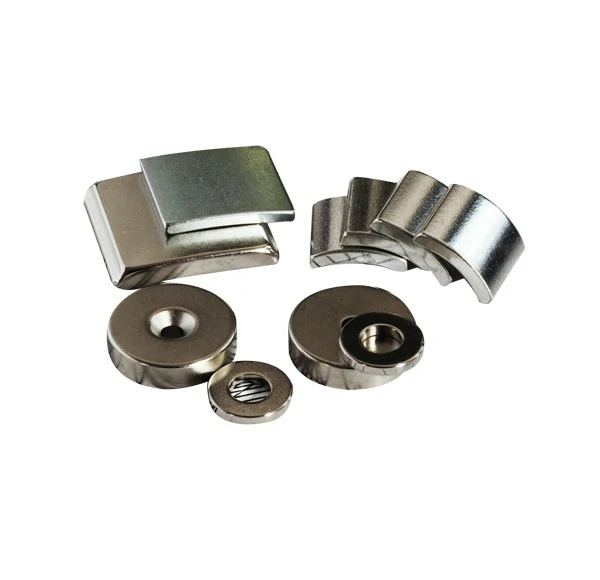

Neodymium magnets are critical components in the construction of high-performance motors and generators. Their strong magnetic fields and compact size allow for the creation of powerful, energy-efficient motors used in electric vehicles (EVs), industrial machinery, and household appliances. In generators, neodymium magnets contribute to efficient energy conversion, providing reliable power generation for various applications.

Magnetic Separation

In industries such as mining and recycling, neodymium magnets are used in magnetic separation equipment to extract ferromagnetic materials from ores or waste. Their high magnetic strength allows for effective separation, improving the efficiency and purity of the final product. This application is crucial for the processing of raw materials and the recovery of valuable metals from electronic waste.

Holding and Lifting

Neodymium magnets are employed in magnetic holding and lifting devices used in industrial environments. These devices utilize the strong magnetic force to securely hold, lift, or move heavy metal objects without the need for clamps or fasteners. This application is particularly valuable in manufacturing and assembly lines, where quick and secure handling of components is essential.

Medical Applications

The medical field benefits greatly from the use of neodymium magnets, which are incorporated into a variety of diagnostic and therapeutic devices. Their precise and controllable magnetic fields enable advancements in medical technology and patient care. Key medical applications include:

Magnetic Resonance Imaging (MRI)

Neodymium magnets are integral to the operation of MRI machines, which use powerful magnetic fields to produce detailed images of the human body. The high magnetic strength and stability of neodymium magnets allow for high-resolution imaging, aiding in the accurate diagnosis of medical conditions such as tumors, brain disorders, and joint abnormalities.

Magnetic Therapy

Neodymium magnets are used in magnetic therapy devices designed to alleviate pain and promote healing. These devices apply controlled magnetic fields to specific areas of the body, purportedly enhancing blood flow and reducing inflammation. While the efficacy of magnetic therapy is still under study, many patients report relief from chronic pain conditions.

Surgical Instruments

In surgery, neodymium magnets are used in specialized instruments that allow for precise and minimally invasive procedures. These magnets can be used to retrieve metallic objects from the body or to stabilize surgical tools, enhancing the accuracy and safety of surgical interventions.

Electronic Applications

The electronics industry relies on neodymium magnets for a variety of applications that require strong magnetic fields and compact designs. Their use in electronic devices has driven advancements in technology and consumer electronics. Key electronic applications include:

Speakers and Microphones

Neodymium magnets are essential components in high-quality speakers and microphones. Their powerful magnetic fields interact with the voice coil to produce sound with excellent clarity and precision. Neodymium magnets enable the creation of compact, lightweight audio devices without compromising on sound quality, making them ideal for use in portable speakers, headphones, and mobile phones.

Computer Hard Drives

In computer hard drives, neodymium magnets are used to control the read/write head that accesses data on the magnetic disk. The strong and stable magnetic fields of neodymium magnets ensure fast and accurate data retrieval, contributing to the performance and reliability of storage devices. This application is critical for the functioning of personal computers, servers, and data centers.

Magnetic Sensors

Neodymium magnets are used in various types of magnetic sensors, including Hall effect sensors and magnetic encoders. These sensors detect changes in magnetic fields and are used in applications such as automotive systems, industrial automation, and consumer electronics. The precision and sensitivity of neodymium-based sensors enable accurate measurement and control in a wide range of devices.

Consumer Product Applications

Neodymium magnets have found their way into numerous consumer products, enhancing functionality and user experience. Their compact size and strong magnetic properties make them ideal for innovative designs and practical solutions in everyday items. Key consumer product applications include:

Magnetic Fasteners and Closures

Neodymium magnets are commonly used in magnetic fasteners and closures for clothing, bags, and accessories. Their strong magnetic force allows for secure and convenient closures that are easy to open and close. This application is particularly popular in products that require quick and reliable fastening, such as handbags, jewelry, and wearable technology.

Toys and Gadgets

In the toy industry, neodymium magnets are used to create interactive and educational toys that engage and entertain. These magnets provide strong magnetic connections that enable the construction of complex models and structures, fostering creativity and learning in children. Additionally, neodymium magnets are used in various gadgets and novelty items, enhancing their functionality and appeal.

Magnetic Mounts and Holders

Neodymium magnets are widely used in magnetic mounts and holders for smartphones, tablets, and other electronic devices. Their strong magnetic force provides a secure and stable mount, allowing for convenient and hands-free use of devices. This application is particularly valuable for car mounts, wall mounts, and desktop holders, where reliable and easy access to devices is important.

7.Benefits of Neodymium Magnets

Neodymium magnets offer a range of significant advantages that make them the preferred choice in numerous applications. Their unique combination of powerful magnetic properties, cost-effectiveness, and versatility has made them indispensable in various industries. In this section, we will explore the key benefits of neodymium magnets and how they contribute to innovation and efficiency across different sectors.

Superior Magnetic Strength

The primary advantage of neodymium magnets is their superior magnetic strength. These magnets are the strongest commercially available permanent magnets, with magnetic properties far surpassing those of other types of magnets such as ferrite or alnico. This exceptional strength provides several benefits:

High Energy Density

Neodymium magnets possess a high energy density, meaning they can generate a powerful magnetic field in a relatively small volume. This makes them ideal for applications where space is limited, yet strong magnetic fields are required. For example, in electric motors used in EVs, neodymium magnets allow for compact designs without sacrificing performance, leading to more efficient and lightweight motor systems.

Enhanced Performance in Miniaturized Devices

Due to their high magnetic strength, neodymium magnets are crucial for the development of miniaturized devices that still require significant magnetic force. In modern electronics such as smartphones and laptops, neodymium magnets enable the creation of smaller, more efficient components that contribute to the overall compactness and functionality of these devices.

Durability and Long-Term Stability

Neodymium magnets offer excellent durability and long-term stability in their magnetic properties. Unlike other types of magnets that may lose their magnetism over time or under adverse conditions, neodymium magnets maintain their strength and effectiveness over extended periods. This reliability is essential in critical applications such as medical devices and industrial machinery where consistent performance is crucial.

Cost-Effectiveness in Large Scale Production

Neodymium magnets provide significant cost benefits, especially in large-scale production. Despite their high performance, they offer a favorable cost-to-benefit ratio that makes them an attractive option for manufacturers. Here are some ways in which neodymium magnets contribute to cost savings:

Reduced Material Costs

Due to their strong magnetic properties, neodymium magnets require less material to achieve the same magnetic force as other types of magnets. This reduces the overall amount of material needed, lowering costs for manufacturers. In applications like magnetic separators or holding devices, using neodymium magnets can lead to substantial savings in material and production costs.

Efficiency in Manufacturing Processes

The manufacturing process for neodymium magnets, although complex, has been optimized for large-scale production. Advances in technology and production techniques have led to more efficient processes, reducing production time and labor costs. This efficiency allows for the production of high-quality magnets at lower costs, making them accessible for a wide range of applications.

Scalability for Mass Production

Neodymium magnets are well-suited for mass production due to their consistent quality and performance. Manufacturers can scale up production without significant increases in cost, making it feasible to produce large quantities of magnets for use in industries such as automotive, electronics, and renewable energy. This scalability is essential for meeting the growing demand for high-performance magnetic components.

Versatility Across Multiple Industries

One of the standout features of neodymium magnets is their versatility. They are used in a wide range of applications across multiple industries, from healthcare to renewable energy. This adaptability makes them a valuable resource for innovators and engineers looking to enhance product performance and efficiency. Here are some examples of how neodymium magnets are utilized across different sectors:

Healthcare and Medical Devices

In the healthcare sector, neodymium magnets are used in devices such as MRI machines, which require strong and stable magnetic fields to produce detailed images of the human body. Their reliability and precision are crucial for accurate diagnostics and treatments. Additionally, neodymium magnets are used in magnetic therapy devices, which are designed to provide pain relief and promote healing through controlled magnetic fields.

Consumer Electronics

In the realm of consumer electronics, neodymium magnets are found in a variety of devices including headphones, speakers, and hard drives. Their compact size and powerful magnetic properties enable the creation of high-performance components that enhance the user experience. Neodymium magnets are essential for producing clear audio, fast data retrieval, and efficient power usage in these devices.

Renewable Energy Systems

Neodymium magnets play a vital role in the development of renewable energy systems, particularly in wind turbines. They are used in the generators of wind turbines to convert mechanical energy into electrical energy efficiently. The high magnetic strength and durability of neodymium magnets contribute to the reliability and longevity of these systems, supporting the growth of sustainable energy sources.

8.Limitations and Challenges of Neodymium Magnets

While neodymium magnets offer numerous benefits, they also come with certain limitations and challenges that need to be considered. Understanding these limitations is crucial for maximizing the performance and longevity of neodymium magnets in various applications. In this section, we will explore some of the key limitations and challenges associated with neodymium magnets.

Brittleness and Fracture Risk

One of the primary challenges of neodymium magnets is their brittleness and susceptibility to fracture. Due to their composition and manufacturing process, neodymium magnets are inherently fragile and can break or chip easily if subjected to mechanical stress or impact. This fragility poses a challenge in applications where the magnets are exposed to physical forces or vibrations, such as in industrial machinery or automotive systems.

Mitigation Strategies

To address the issue of brittleness and fracture risk, several mitigation strategies can be employed. One approach is to encapsulate the magnets in protective coatings or housings that shield them from external forces. Additionally, designing components with adequate structural support and minimizing stress concentrations can help reduce the risk of fracture. It is also important to handle neodymium magnets with care during installation and operation to prevent damage.

Temperature Sensitivity

Another limitation of neodymium magnets is their sensitivity to temperature variations. Neodymium magnets can lose their magnetic properties or even demagnetize entirely if exposed to high temperatures, which can occur in certain industrial processes or environments. This temperature sensitivity can limit the use of neodymium magnets in high-temperature applications.

Thermal Management

To mitigate the effects of temperature on neodymium magnets, thermal management strategies can be employed. This may include using cooling systems or heat sinks to maintain the magnets at optimal operating temperatures. Selecting neodymium magnets with higher temperature ratings or using alternative magnet materials for high-temperature applications can also help overcome this limitation.

9.Comparing Neodymium Magnets with Other Types of Magnets

Neodymium magnets are known for their exceptional magnetic properties, but how do they compare to other types of magnets on the market? In this section, we will compare neodymium magnets with three other common types of magnets: ferrite magnets, samarium-cobalt magnets, and alnico magnets. By examining their differences in terms of magnetic strength, temperature resistance, and cost, we can gain a better understanding of the unique advantages of neodymium magnets.

Neodymium Magnets vs. Ferrite Magnets

Ferrite magnets, also known as ceramic magnets, are the most widely used type of magnet due to their low cost and moderate magnetic strength. However, when compared to neodymium magnets, ferrite magnets have several key differences:

• Magnetic Strength: Neodymium magnets are significantly stronger than ferrite magnets, offering higher magnetic saturation and coercivity.
• Temperature Resistance: Neodymium magnets have better temperature resistance than ferrite magnets, which can become demagnetized at relatively low temperatures.
• Cost: Neodymium magnets are more expensive than ferrite magnets due to their higher magnetic performance and rare earth elements content.

Neodymium Magnets vs. Samarium-Cobalt Magnets

Samarium-cobalt magnets are another type of rare earth magnet known for their high magnetic strength and temperature resistance. Compared to neodymium magnets, samarium-cobalt magnets have the following differences:

• Magnetic Strength: Both neodymium and samarium-cobalt magnets exhibit similar magnetic strengths, but neodymium magnets are generally more cost-effective.
• Temperature Resistance: Samarium-cobalt magnets have better temperature resistance than neodymium magnets, making them suitable for high-temperature applications.
• Cost: Samarium-cobalt magnets are more expensive than neodymium magnets due to their higher cobalt content and more complex manufacturing process.

Neodymium Magnets vs. Alnico Magnets

Alnico magnets are a type of alloy magnet composed of aluminum, nickel, and cobalt. Compared to neodymium magnets, alnico magnets have the following differences:

• Magnetic Strength: Neodymium magnets are much stronger than alnico magnets, offering higher magnetic flux density and energy product.
• Temperature Resistance: Alnico magnets have better temperature resistance than neodymium magnets, but they are still inferior to samarium-cobalt magnets in this regard.
• Cost: Alnico magnets are more expensive than ferrite magnets but cheaper than neodymium magnets due to their composition and manufacturing process.

10.Coatings and Surface Treatments for Neodymium Magnets

Coatings and surface treatments play a crucial role in protecting neodymium magnets from corrosion, abrasion, and other forms of damage, while also improving their performance in certain applications. In this section, we will explore the types of coatings available for neodymium magnets, the benefits of different coatings, and best practices for coating application.

Types of Coatings Available

There are several types of coatings that can be applied to neodymium magnets, each offering unique properties and benefits. Some common types of coatings include:

• Nickel: Nickel coating is one of the most common coatings for neodymium magnets, providing excellent corrosion resistance and durability. It is suitable for a wide range of applications and environments.
• Epoxy: Epoxy coating is often used to provide a protective layer over the magnet, offering resistance to chemicals, moisture, and impact. It is particularly useful in harsh environments.
• Gold: Gold coating provides a decorative finish while also offering good corrosion resistance. It is commonly used in electronics and jewelry applications.
• Zinc: Zinc coating provides a cost-effective option for corrosion protection, particularly in outdoor or high-humidity environments.

Benefits of Different Coatings

Each type of coating offers specific benefits that make it suitable for different applications. Some of the key benefits of different coatings include:

• Nickel: Excellent corrosion resistance, durability, and compatibility with various environments.
• Epoxy: Chemical resistance, moisture resistance, and impact resistance.
• Gold: Corrosion resistance, decorative finish, and compatibility with electronics.
• Zinc: Cost-effectiveness, good corrosion protection, and suitability for outdoor applications.

Best Practices for Coating Application

When applying coatings to neodymium magnets, it is important to follow best practices to ensure optimal performance and durability. Some best practices for coating application include:

• Surface Preparation: Ensure that the surface of the magnet is clean and free of contaminants before applying the coating to ensure proper adhesion.
• Proper Application: Use the appropriate method (e.g., spraying, dipping) and apply the coating evenly to achieve a uniform finish and coverage.
• Curing: Follow the manufacturer's instructions for curing the coating to ensure that it properly adheres to the magnet surface and provides the desired protection.
• Quality Control: Perform quality control checks to ensure that the coating meets the desired specifications and provides the necessary protection for the magnet.

11.Best Practices for Selection and Use of Neodymium Magnets

Selecting and using neodymium magnets requires careful consideration of several factors to ensure optimal performance and longevity. In this section, we will discuss the best practices for selecting and using neodymium magnets, including criteria for choosing the right magnet, application-specific recommendations, and tips for maximizing magnet performance.

Criteria for Choosing the Right Magnet

When selecting a neodymium magnet for your application, consider the following criteria to ensure compatibility and optimal performance:

• Magnetic Strength: Choose a magnet with the appropriate magnetic strength for your application, taking into account factors such as size, shape, and desired performance.
• Temperature Rating: Select a magnet with a temperature rating that meets the requirements of your application, especially if it will be exposed to high temperatures.
• Coating: Choose a magnet with a suitable coating to protect it from corrosion and abrasion, based on the application environment.
• Size and Shape: Consider the size and shape of the magnet to ensure it fits and functions properly in your application.
• Cost: Evaluate the cost of the magnet in relation to its performance and suitability for your application.

Application-Specific Recommendations

For specific applications, consider the following recommendations to maximize the performance and longevity of neodymium magnets:

• Industrial Applications: Use magnets with high magnetic strength and temperature resistance for industrial applications requiring heavy-duty performance.
• Electronic Applications: Choose magnets with suitable coatings and sizes for electronic applications where space and protection are critical.
• Medical Applications: Select biocompatible coatings for neodymium magnets used in medical devices to ensure safety and compatibility.
• Automotive Applications: Use magnets with high corrosion resistance and temperature stability for automotive applications where reliability is essential.

Tips for Maximizing Magnet Performance

To maximize the performance and longevity of neodymium magnets, consider the following tips:

• Proper Handling: Handle magnets with care to prevent damage, such as chipping or cracking.
• Storage: Store magnets in a cool, dry place away from magnetic fields and moisture to prevent demagnetization.
• Installation: Install magnets properly to avoid mechanical stress and ensure optimal performance.
• Maintenance: Periodically inspect magnets for damage or wear and replace them as needed to maintain performance.

By following these best practices for selecting and using neodymium magnets, you can ensure that they perform optimally in your application, providing long-lasting and reliable magnetic properties.

Conclusion

In conclusion, neodymium magnets are a game-changer in the world of magnet technology. Their unparalleled magnetic strength and diverse applications make them an essential component in many industries. By understanding the key characteristics, manufacturing process, and best practices for selection and use, you can harness the full potential of neodymium magnets in your applications. For high-quality neodymium magnets, consider Mag-spring, a leading manufacturer known for their innovative solutions and reliable products. Visit www.mag-spring.com to explore their wide range of neodymium magnets and magnetic assemblies, and discover how they can benefit your projects.

Read More:

• Top 10 Magnet Manufacturers in World

• N35 Magnet vs N52 Magnet: What's Difference

• Neodymium Magnet vs Ferrite Magnet: What is the Difference
