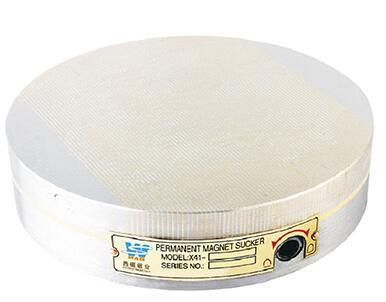

Round Permanent Magnetic Chuck SWPC51
Description
Reviews
The Round permanent magnetic chuck is an ideal choice for all kinds of work piece grinding or cutting on lathe, grinder, EDM and the Rotary Table. For smaller and thinner work piece, the micropitch permanent magnetic chuck is the best choice.
1.Part No.: SWPC 51
2.Material??strong Ndfeb Magnet
3.Holding force: 100N/cm2
4.Pitch:0.5+1.5/1+3/0.5+1
5.Sample : available
6.MOQ:1 PC
7.Lead time:30days
8.Packing:standard brown carton/wood case
9.Payment term: T/T
10.Loading Port:Ning Bo/Shang Hai
MODEL NO | Dimensions(mm) | NW(Kg) | Magnetic Force (N/CM2) | |||||
|---|---|---|---|---|---|---|---|---|
D | H | K | C | Z | M | |||
SWPC51-125 | 125 | 48 | 3 | 80 | 4 | M6 | 4.6 | 100 |
SWPC51-150 | 150 | 48 | 3 | 100 | 4 | M6 | 6.6 | 100 |
SWPC51-160 | 160 | 48 | 3 | 100 | 4 | M8 | 8.9 | 100 |
SWPC51-200 | 200 | 52 | 4 | 120 | 4 | M8 | 12.8 | 100 |
SWPC51-250 | 250 | 52 | 4 | 160 | 4 | M8 | 20 | 100 |
SWPC51-300 | 300 | 58 | 4 | 220 | 4 | M8 | 32 | 100 |
SWPC51-400 | 400 | 58 | 4 | 300 | 4 | M10 | 57 | 100 |
SWPC51-500 | 500 | 65 | 5 | 408 | 4 | M12 | 100 | 100 |
SWPC51-600 | 600 | 65 | 5 | 528 | 4 | M12 | 144 | 100 |
