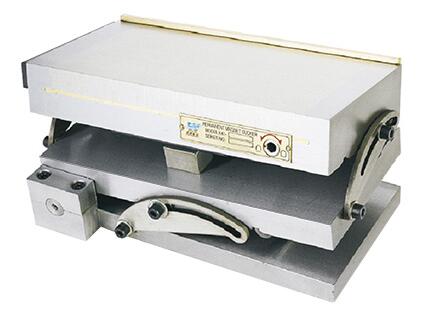

Permanent Magnetic Chuck SWPC43 with Double Sine Plate
Description
Reviews
Magnetic Chucks consists of wearable brass, steel and strong permanent magnets which is ideal for holding working pieces on grinding machine, EDM, carving machine, etc.Magnetic Chuck SWPC43 with Double Sine Plate is suitable for high-precision angle grinding processing at the front and back angles or the left&right angle
1.Part No.: SWPC 43
2.Material??strong Ndfeb Magnet
3.Holding force: 100N/cm2
4.Pitch:0.5+1.5/1+3/0.5+1
5.Sample : available
6.MOQ:1 PC
7.Lead time:30days
8.Packing:standard brown carton/wood case
9.Payment term: T/T
10.Loading Port:Ning Bo/Shang Hai

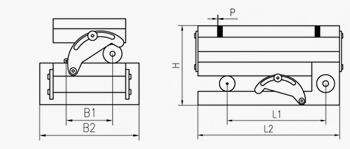

MODEL NO | Dimensions(mm) | Tilting degree | NW(Kg) | Magnetic Force (N/CM2) | ||||
|---|---|---|---|---|---|---|---|---|
L | B | C | D | E | ||||
SWPC43-10175 | 100 | 225 | 110 | 75 | 100 | 0-60?? | 12.6 | 100 |
SWPC43-1515 | 100 | 200 | 115 | 100 | 150 | 0-60?? | 17 | 100 |
SWPC43-1530 | 150 | 300 | 115 | 100 | 150 | 0-60?? | 34.5 | 100 |
SWPC43-12525 | 150 | 250 | 115 | 100 | 125 | 0-60?? | 23 | 100 |
