Hump Magnetic Separator
Description
Reviews

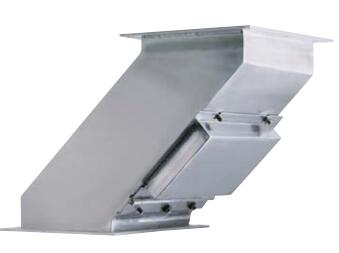

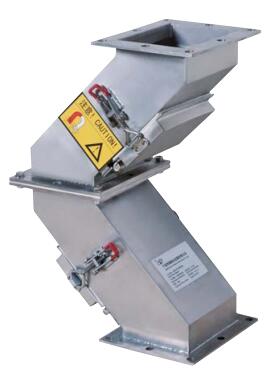

Hump magnet is used to remove large pieces of tramp irons as well as ferrous fragments from gravity-flow materials or material flow activated by wind in enclosed flow lines before they reach to storange bins or process equiments.
1.Housing:SS304 or SS316L
2.Surface treatment: sand blasting /brushing
3.Magnetic intensity :1500-10000GS
4.Max working temparature: from 80 to 350
5.Magnet materials : Samarium-Cobalt (rare-earth), Ceramic , Neodymium-Iron-Boron(rare-earth)
6.Food grade welding: availble
7.Custom made :available.your logo/brand/patte can be printed o
8.MOQ:1PC
9.Lead time:45-50days
10.Packing:wood case
11.Payment term: T/T
12.Loading Port:Ning Bo/Shang Hai

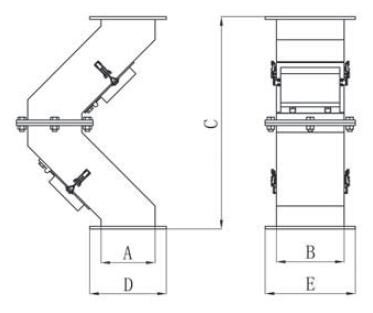

MODEL NO | Dimension(mm) | Weight(Kg) | ||||
|---|---|---|---|---|---|---|
A | B | C | D | E | ||
SWFHM120 | 120 | 150 | 470 | 170 | 200 | 15 |
SWFHM150 | 150 | 178 | 750 | 250 | 220 | 37 |
SWFHM200 | 200 | 178 | 750 | 300 | 220 | 49 |
SWFHM250 | 250 | 178 | 750 | 350 | 220 | 61 |
SWFHM300 | 300 | 178 | 750 | 400 | 220 | 73 |
SWFHM350 | 350 | 200 | 1110 | 450 | 300 | 141 |
SWFHM400 | 400 | 200 | 1110 | 500 | 300 | 161 |
SWFHM450 | 450 | 200 | 1110 | 550 | 300 | 181 |
SWFHM500 | 500 | 200 | 1110 | 600 | 300 | 201 |
MODEL NO | Dimension(mm) | Weight(Kg) | ||||
|---|---|---|---|---|---|---|
B | A | C | E | D | ||
SWNHM120 | 150 | 120 | 470 | 170 | 200 | 14 |
SWNHM150 | 178 | 150 | 750 | 250 | 220 | 33 |
SWNHM200 | 178 | 200 | 750 | 300 | 220 | 44 |
SWNHM250 | 178 | 250 | 750 | 350 | 220 | 55 |
SWNHM300 | 178 | 300 | 750 | 400 | 220 | 66 |
SWNHM350 | 200 | 350 | 1110 | 450 | 300 | 128 |
SWNHM400 | 200 | 400 | 1110 | 500 | 300 | 146 |
SWNHM450 | 200 | 450 | 1110 | 550 | 300 | 164 |
SWNHM500 | 200 | 500 | 1110 | 600 | 300 | 182 |
About Us
Mag-spring was established in 2003 and is located in Ningbo, Zhejiang Province, China. It is a comprehensive manufacturer of magnetic application products, specializing in the research, design and production of magnetic filters and various magnetic application components.
The company has a group of professional technicians and production equipment, operates strictly in accordance with the ISO9001 quality system, and continuously strengthens internal management. While the company is constantly developing, it pays attention to environmental protection. It is an ISO14001 certified enterprise, and the company's products meet the requirements of the EU ROHS directive.
Based on the enterprise tenet of "efficiency, perfection, harmony and dedication" and the enterprise slogan of "everything we handle must be excellent", with many years of experience in research, design, manufacturing and sales in the field of magnetic products, the company's products have been recognized by many customers at home and abroad. We will sincerely look forward to cooperating with you with high-quality products, preferential prices and the best services.
