Drawer Magnet
Description
Reviews
Drawer magnets are widely used in field of ceramics, chemicals, pharmacy, food, plastic, rubber, dyestuff, mining and environmental protection and designed for removing ferrous contaminations from dry powder, strip or graininess materials such as sugar, grain, tea etc.
1.Housing:SS304 or SS316L
2.Surface treatment: sand blasting /polishing
3.Magnetic intensity :1500-13000GS
4.Max working temparature: from 80 to 350
5.Magnet materials : Samarium-Cobalt (rare-earth), Ceramic , Neodymium-Iron-Boron(rare-earth)
6.Food grade welding: availble
7.Custom made :available.your logo/brand/patte can be printed on
8.MOQ:1PC
9.Lead time:30days
10.Packing:/wood case
11.Payment term: T/T
12.Loading Port:Ning Bo/Shang Hai

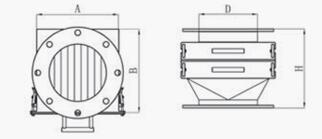

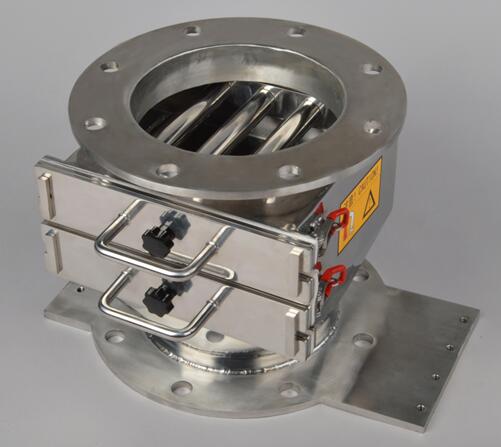

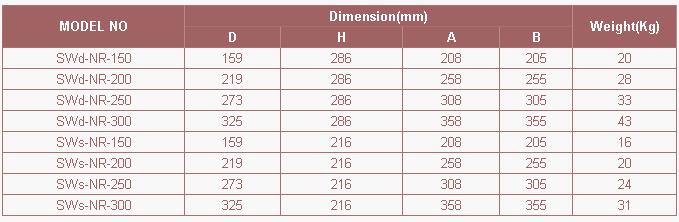

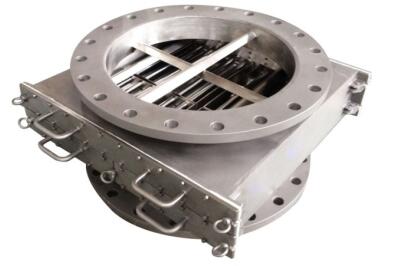

Drawer magnet with round flange
MODEL NO | Dimension(mm) | Weight(Kg) | |||
|---|---|---|---|---|---|
D | H | A | B | ||
SWd-NR-150 | 159 | 286 | 208 | 205 | 20 |
SWd-NR-200 | 219 | 286 | 258 | 255 | 28 |
SWd-NR-250 | 273 | 286 | 308 | 305 | 33 |
SWd-NR-300 | 325 | 286 | 358 | 355 | 43 |
SWs-NR-150 | 159 | 216 | 208 | 205 | 16 |
SWs-NR-200 | 219 | 216 | 258 | 255 | 20 |
SWs-NR-250 | 273 | 216 | 308 | 305 | 24 |
SWs-NR-300 | 325 | 216 | 358 | 355 | 31 |

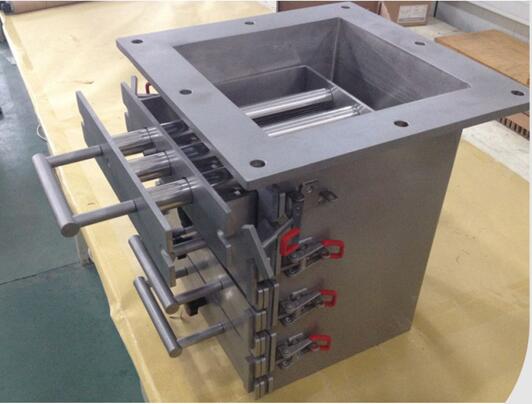

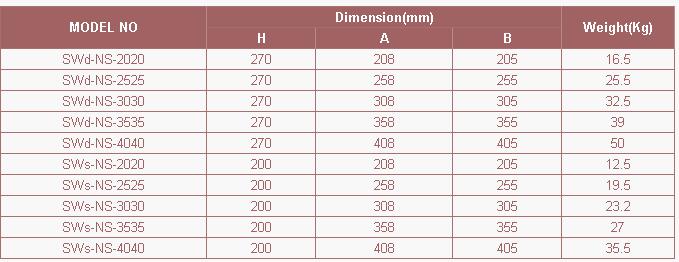

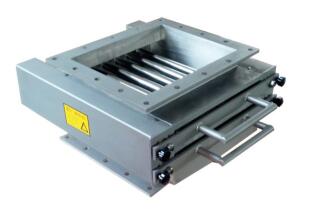

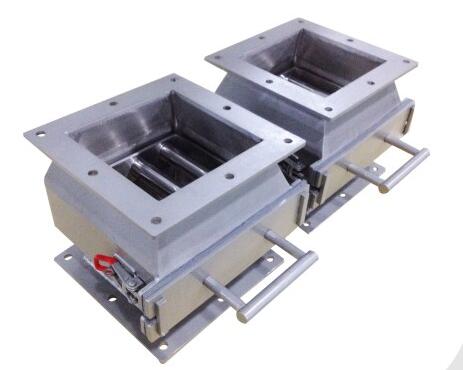

Drawer magnet with square flange
MODEL NO | Dimension(mm) | Weight(Kg) | ||
|---|---|---|---|---|
H | A | B | ||
SWd-NS-2020 | 270 | 208 | 205 | 16.5 |
SWd-NS-2525 | 270 | 258 | 255 | 25.5 |
SWd-NS-3030 | 270 | 308 | 305 | 32.5 |
SWd-NS-3535 | 270 | 358 | 355 | 39 |
SWd-NS-4040 | 270 | 408 | 405 | 50 |
SWs-NS-2020 | 200 | 208 | 205 | 12.5 |
SWs-NS-2525 | 200 | 258 | 255 | 19.5 |
SWs-NS-3030 | 200 | 308 | 305 | 23.2 |
SWs-NS-3535 | 200 | 358 | 355 | 27 |
SWs-NS-4040 | 200 | 408 | 405 | 35.5 |

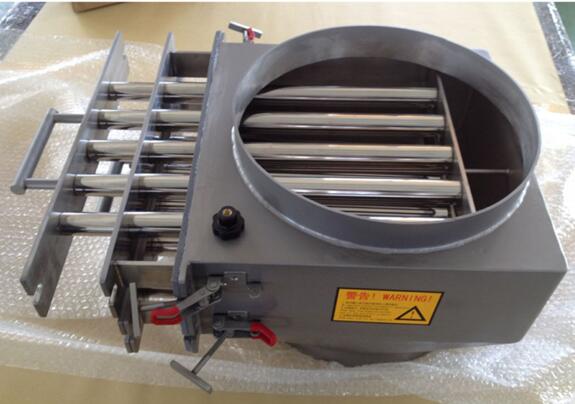

Easy Cleaning type:
