14,000GS Magnetic Rod Filter for Chemical
Description
Reviews

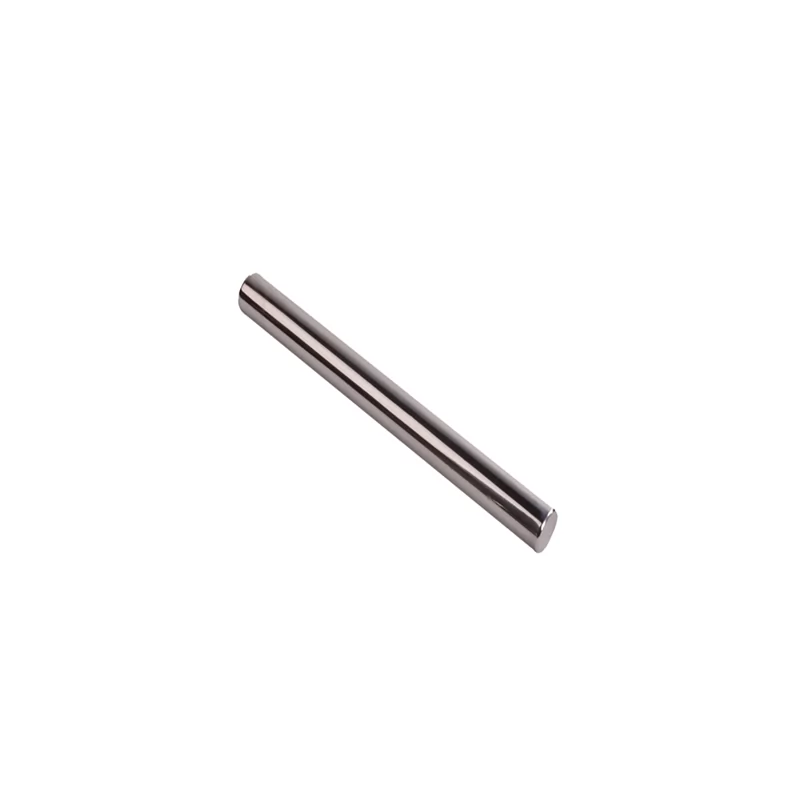

14,000GS Magnet Rod Filter is also named magnetic rod, magnetic bars, magnetic filter bars which consists of stainless steel tube and permanent magnets and is designed to remove small or medium size ferrous tramp metal contaminant from dry and liquid products.Dimension, construction and feature.
Fetures:
1. The most common diameter is 1"(25MM), the length can be from 75mm to 2500mm. Other Standard magnetic filter bars include diameter 10, 16, 19, 20, 22, 2325, 28, 32, 38, 50, 76, 100mm.
2.It is equipped with high density and high-energy rare-earth magnets to meet your application. You can build or modify your own magnetic separation equipment with individual magnetic filter rod
3. Magnetic strength ranges from 2000 to14,000gauss.The magnetic strenth for magnetic bars with ceramic can be more than 2500 Gauss on the surfaces while magnetic tubes with Rare-earth magnetswhich peak value can be more than 14, 000 Gauss on the surfaces. Max temperature is up to 350 Centigrade degree
4. Fully seal welded with either plain ends or tapped ends are available to suit your application.
5. Waterproof is available
| Name | Magnetic Rod Filter |
| Material | Ndfeb magnet /ferrite magnet/smco magnet |
| Surface treatment | polishing |
| Coating | teflon,tungsten carbide,nitriding |
| Diameter | 10/1619/20/22/25/28/32/38/50/76/100 |
| Max working Temparature | 350 |
| Housing material | SS304/SS316 |
| Max magnetic strengh | 14000GS |
| Monthly Output | 50,000pcs |
| MOQ | 1pc |
| Port | Ningbo |
| Packing | Carto |
| Lead time | 15days |
Diameter options
|
Part No |
0.25T |
0.5T |
0.7T |
0.9T |
1T |
1.1T |
1.3T |
|
10 |
EH |
H |
- |
- |
- |
- |
- |
|
16 |
EH |
EH |
EH |
H |
H |
- |
- |
|
19 |
EH |
EH |
EH |
H |
H |
- |
- |
|
20 |
EH |
EH |
EH |
SH |
H |
H |
- |
|
22 |
EH |
EH |
EH |
EH |
EH |
H |
- |
|
23 |
EH |
EH |
EH |
EH |
EH |
H |
- |
|
25 |
EH |
EH |
EH |
EH |
EH |
EH |
H |
|
28 |
EH |
EH |
EH |
EH |
EH |
EH |
H |
|
32 |
EH |
EH |
EH |
EH |
EH |
EH |
H |
|
38 |
EH |
EH |
EH |
EH |
UH |
H |
H |
|
50 |
EH |
EH |
EH |
UH |
H |
H |
H |
|
76 |
EH |
EH |
EH |
H |
H |
H |
H |
|
100 |
EH |
EH |
H |
H |
- |
- |
H |
